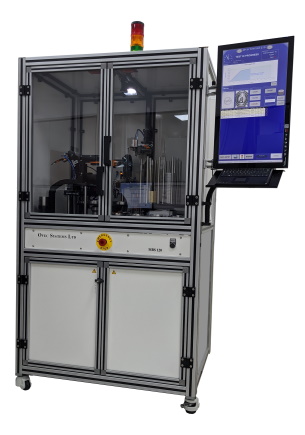

Key Features
- Fast Cycle Time
- Repeatable Missile, Buckle & Score Integrity Testing
- Quick Change Parts for 200, 202 & 206 Ends with Automatic Detection
- Aperture Opening Measurement as Standard
- Accurate End Alignment
- Programmable Pressurised Testing – Variable Ramp and Multi Step Configurable per Product
- 24” Touch Screen Control
- Easy Multiple Recipe Set Up
- Allen Bradley PLC Controlled
- Up to 120 Ends Per Stack × 6
| Capacity | |
|---|---|
| Sample Size | Max 720, up to 120 ends per stack × 6 |
| Number of Batches | Up to 12 per stack |
| Ends per Batch | 1–120 with a total sample size of 120 |
| End Size | All standard end sizes |
| Test Types | |
| Buckle | Upper Pass Threshold – if the pressure is contained above this level the test has passed |
| Missile | End Opening Aperture in % or any unit of area; a value > 0 indicates panel has ruptured |
| Score Integrity | Upper Pass Threshold – if pressure is contained above this level the test has passed |
| Test Parameters (Typical) | |
| Missile | 0 to 70 psi at 14.5 psi/s, 70 to 80 psi at 1.5 psi/s |
| Buckle | 0 to 80 psi at 14.5 psi/s, 80 to 120 psi at 1.5 psi/s |
| Score Integrity | 0 to 95 psi at 14.5 psi/s, 95 to 120 psi at 1.5 psi/s |
| Test Pressure Range | 0 to 140 psi ±0.1 |
| Services Required | |
| Power | 110v 4 amps 50/60Hz 230v 2 amps 50/60Hz Single phase |
| Compressed Air | Dry Air @ 5–6 Bar |
| Dimensions | |
| Overall | 102cm(L) × 75cm(W) × 180cm(H) – Floor Standing |
