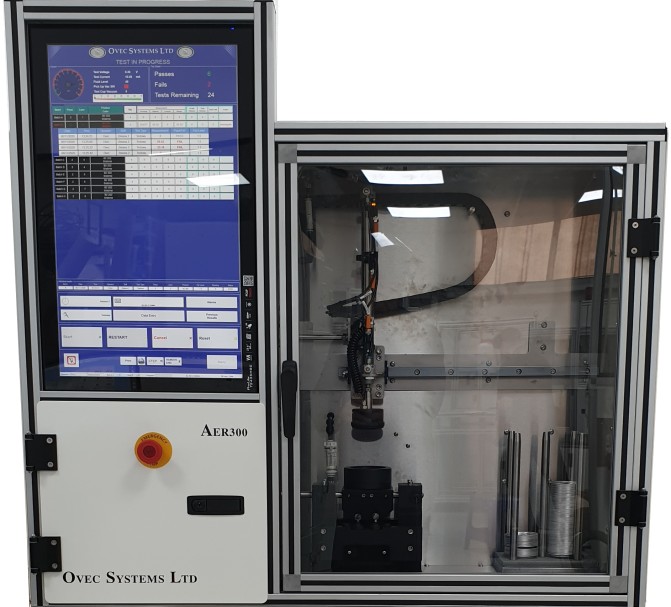

AER300 – Automatic Enamel Rater
Ovec's Automatic Enamel Rater, designed, developed and tested with End manufacturers has been in quality labs across the globe for many years. Continuous improvements through increased software functionality and the development of hardware have kept this competitively priced system a firm favourite amongst quality departments. Suitable for Easy-Open and Full Opening Ends, the AER300 is Automatic • Reliable • Accurate.
The AER300 Automatic Enamel Rater can test up to 108 Shells or Ends per test run, with 36+ separate batches and a throughput of up to 300 ends per hour. Quick change parts are available for different End sizes and the gauge provides Industry Standard results both locally and via Ethernet network output.
- Suits all standard End sizes – Easy-Open and Full Opening Ends
- Quick change parts for most end sizes
- No End preparation required – no operator judgement required
- 36+ batches in one test loading
- Test up to 300 ends per hour
- Automatic electrolyte level control from large reservoir
- Automatic calibration check every cycle
- Automatic electrical contact and continuity check every cycle
- Vacuum held Ends for reliable positive sealing
- Industry standard test results – utilises and improves on industry proven test procedures
- Fast cycle time (based on 4 second immersion)
- Automatic low fluid alert
- Fail Stack for easy identification of failed samples
- Storage of preset test data
- Local display and printout of results
- Automatic Ethernet data logging
- Easy maintenance and excellent serviceability

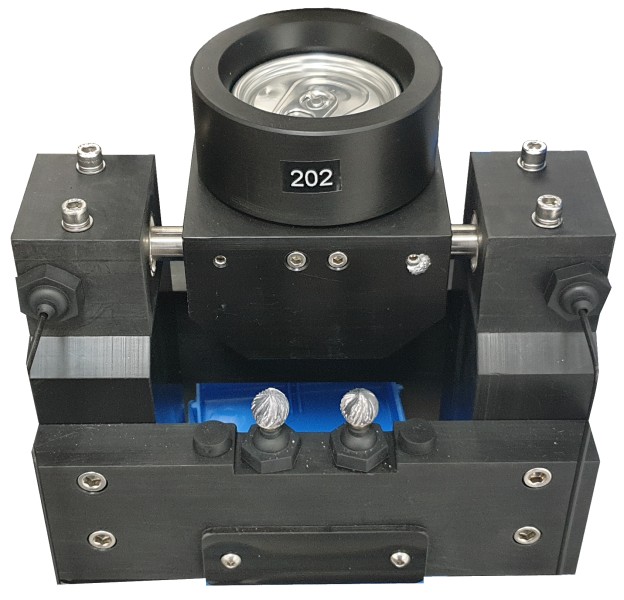

- All Test Head components are stainless steel or acetal to withstand the harsh environment
- PLC controlled – Industry standard Allen Bradley or Siemens
- Small footprint required, allowing the system to fit neatly into any quality lab

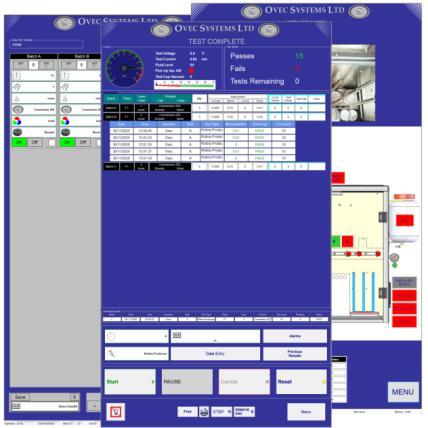

- 24” Touch Screen Control

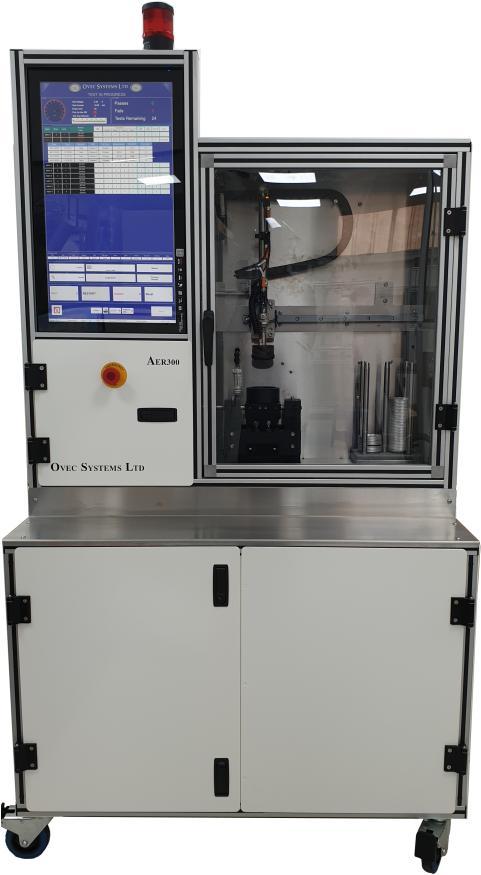

- Available with lockable trolley, allowing all change parts etc to be kept with the system
| Capacity | |
|---|---|
| Sample size | Up to 108 shells/ends |
| Number of batches | 36+ |
| Ends per batch | 1–108 (total sample size 108) |
| End size | All standard end sizes |
| Test Parameters | |
| Test voltage | 6.3 volts (based on WACO industry standard) |
| Test time | 4 seconds (industry standard) |
| Resolution | 0.1mA |
| Services Required | |
| Power | 110–230v, 5 amps, 50/60Hz, Single phase |
| Compressed Air | Dry Air @ 5–6 Bar |
| Dimensions | |
| Overall | 102cm(L) x 72cm(W) x 190cm(H) – Floor Standing |
