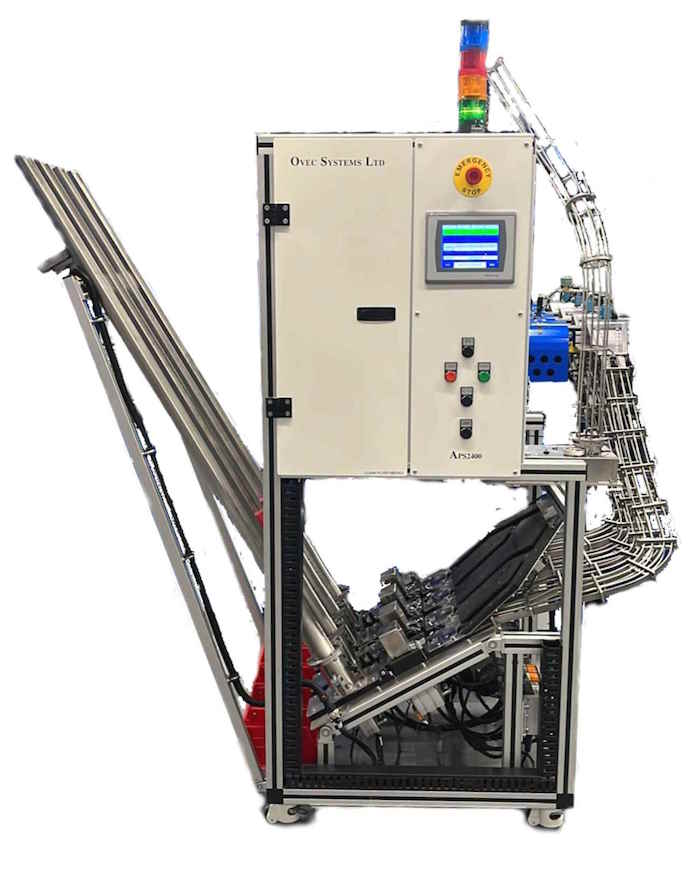

APS1800 and APS2400 – Automatic Pressure Sampler

For Easy–Open and Full Opening Ends – Automatic – Reliable – Accurate

Key features of the APS1800 – 2400:

• Supply representative sample of pressure tested ends
• Collects and Gross tests up to 2% of ends per lane
• Available for all standard end sizes
• Adjustable sample rates
• PLC controlled
• Highlights Gross leakage problems at point of production
• Minimal operator input required
• Low maintenance
• Custom made kick-off lanes which allow the pressure sampler to be easily exchanged with an online Micro Leak Detector

APS Specification

Capacity
Sample size	Up to 2% of ends produced per lane
Test pressure	3.5 Bar
End size	All standard end sizes
Detectable leak	1×10-3 atms cc/sec *
Services Required
Power	110 – 230v, 5 amps, 50/60Hz, Single phase
Compressed air	Dry air @ 5–6 Bar
Dimensions
APS1800	102cm (L) × 52cm (W) × 92cm (H)

* It is not the recommendation of Ovec Systems Ltd to use pressure sampling as a substitute for Micro Leak testing. Pressure sampling makes use of the utilities (power, air etc.) required to collect a sample to be tested on an Offline Micro Leak Detector in the absence of an online Micro Leak Detector, allowing the quick detection of Gross Leaks.

For further details please Contact Us
